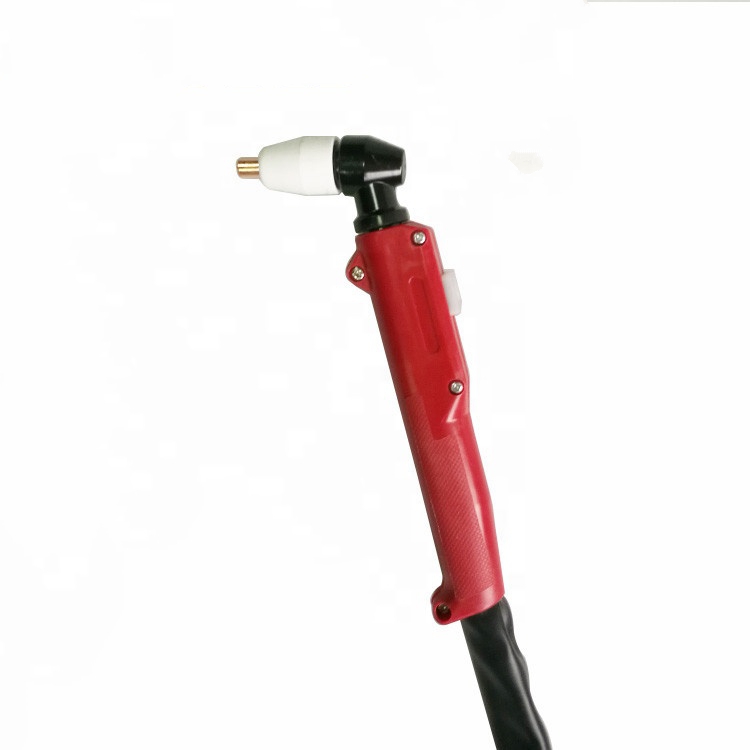

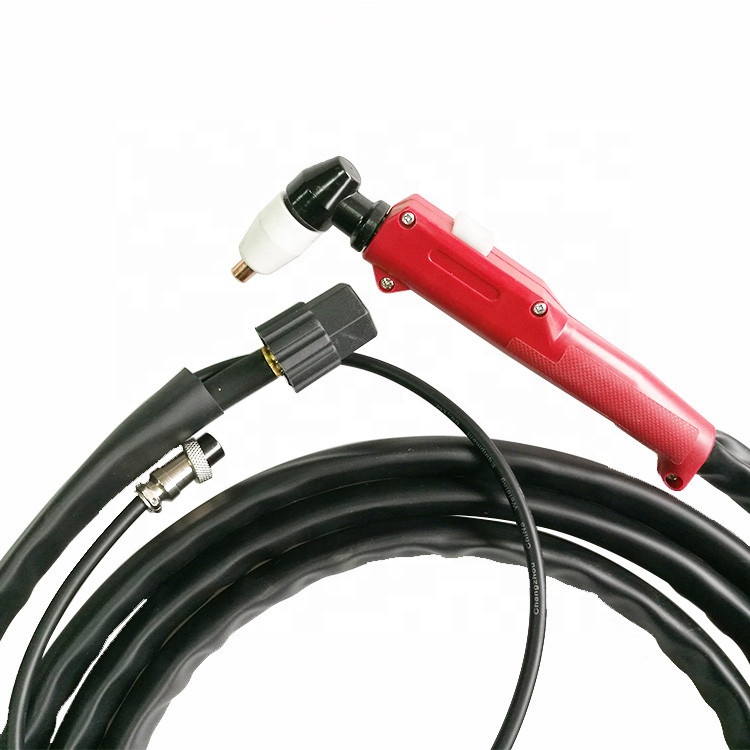

PT31 Air Cooled Plasma Welding Cutting Torch

Short Description:

Plasma P80, AG60, PT31, AG100, SG51,SG55, CB50,CB70,CB100,CB150, A81, A101, A141, S45, S75, PT40,PT60, PT80, PT100 etc.

Send email to us

Product Detail

FAQ

Product Tags

PT31 Air Cooled Plasma Welding Cutting Torch

Technical	Data
Current	60Amp
Duty Cycle / Rating	60%
Gas / Gas Pressure	Single Air / 4.5-5.5 Bar
Gas Flow	160LPM
Ignition	HF
Post Flow	40 sec. recommended

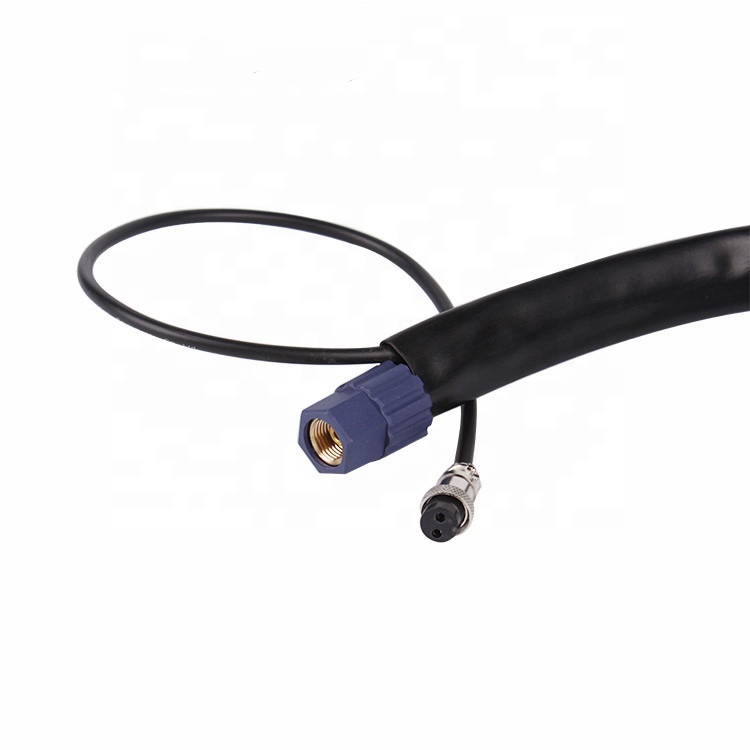

Rear Connector for Choose	3/8'' BSP / 9/16-18UNF / M16x1.5 / M14x1.5 / M14x1
Cutting Capacity	10mm
Certification	ISO9001, CCC, CE, ROHS, TUV
Packing	1 set/neutral packing box, 5 sets/Carton Box
Length for Choose	4m / 5m / 8m / 10m / Customized

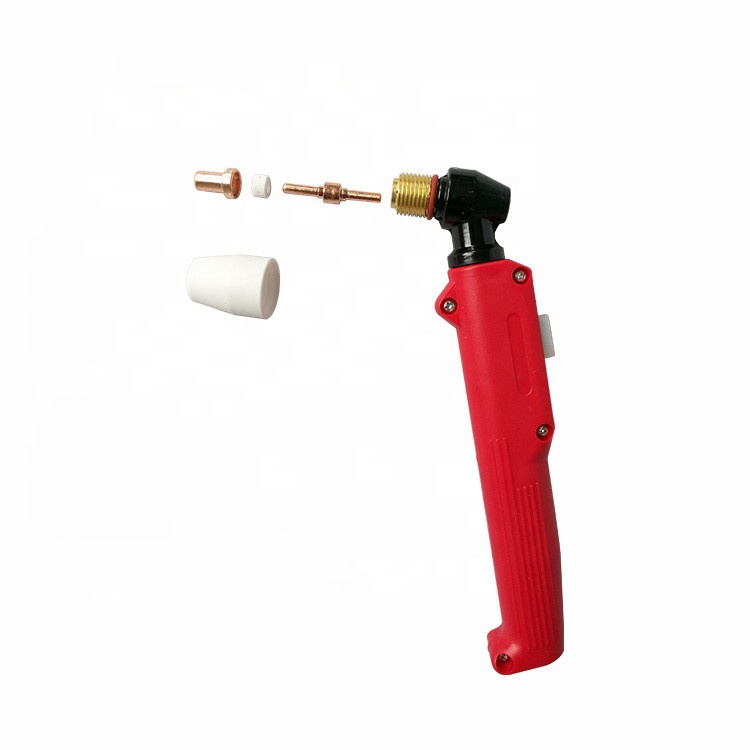

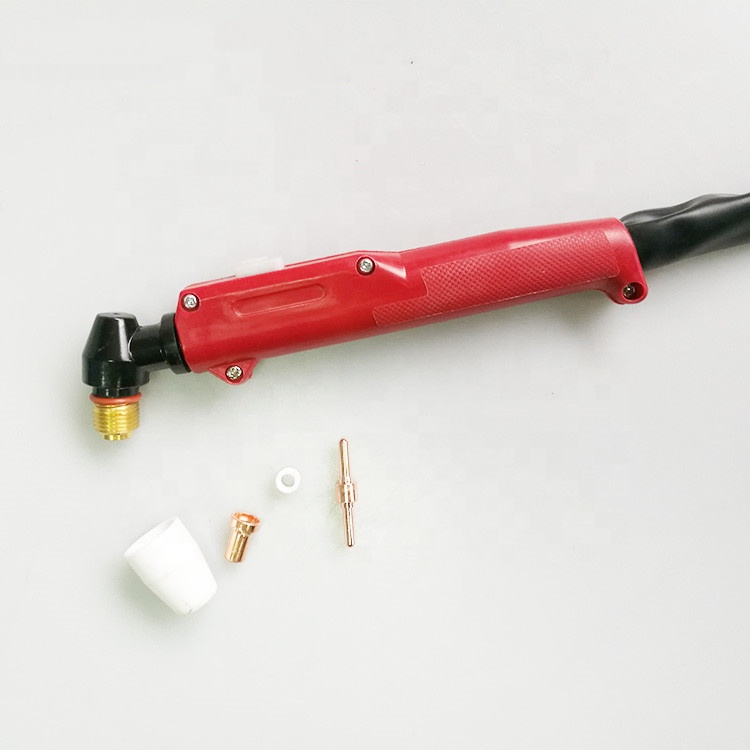

CONSUMABLES
PF0086	Torch Head -Hand
BW0020	Handle c/w Switch
PR0031	Electrode - Zirconium
PR0031	Electrode - Hafnium
PC0021-1	Shield Cup
CV0010	Spacer Spring
PD0130-10	Nozzle 0.96 - .038 - 30 amp
PD0130-11	Nozzle 1.07 - .042 - 40 amp
PD0130-12	Nozzle 1.17 - .046 - 60 amp

Why choose us

1.19 Years in developing and sourcing welding and cutting equipment and its parts .
2. We have a professional team for OEM & ODM， and quality control.
3. High quality &diversified products ,variety of welding products.
4. The latest production facilities and professionals who are continuously committed to improve the value of our products and services for the benefit of all our present and future customers .
5.Our ultimate goal is to satisfy our customers' needs in the most competitive manner of both quality and price.

Excellent bionics and adaptive design

XINFA series welding torch is the best solution for the same kind of air-cooled/liquid-cooled welding torch.Combined with advanced technology and the best quality ergonomic design, it operates smoothly in all environments.
The ball head design of the plunger and ensures a highly secure optimal.All welding torches are carefully designedto provide comfort and precise operation.
Advantages:
Plug-in type economic short handle has excellent accessibility;
The soft glue and finger pad on the handle remain comfortable in extreme conditions;
Short ball head connection with excellent motion radius for comfortable operation;
Welding gun with the best cooling performance - extend the service life of welding gun;
Euro type central joint adjustable welding gun improves efficiency.

We mainly produce

1.MIG /CO2/TIG Argon Welding Torches, Plasma Cutting Torches and Accessories are as follows: 1. Binzel 15AK, 24KD, 25AK,36KD,40KD,RB61D Air Cooling Torch, 240D,401D,510D, 610D Water Cooling Welding Torches;
2. Panasonic 180A,200A, 350A, 500A Welding Torches;
3. OTC 180A, 200A, 350A, 500A Welding Torches;
4. PSF/ESAB 205A, 305A, 405A, 505A Welding Torch;
5. Amercian type BN200A/300A/400A, TWC 2#/3#/4#/5#;
6. Fronius type AW4000 /AW5000 / AL2300/ AL3000/ AL4000 / MTW500i;
7. KP type PMT / MMT 32/42/52/42W/52W welding torches and spare parts;
8. Robot automatic welding torches and spare parts nozzle, contact tip, tip holder, swan neck, diffuser, liner, etc.
9. Plasma P80, AG60, PT31, AG100, SG51,SG55, CB50,CB70,CB100,CB150, A81, A101, A141, S45, S75, PT40,PT60, PT80, PT100 etc.
10. TIG Welding Torches: WP9/WP12/WP17/WP18/WP20/WP26/WP27/ Air / Water Cooling Torch
11. TIG/Argon Welding Cutting parts: electrode tip nozzle, welding collect, collect body, gas lens, ceramic nozzle, long cap,short cap.
12. MIG/C02 welding parts: contact tip, tip holder, swan neck, welding nozzle, gas diffuser, welding liner, Teflon liner, cable plug, euro connector, Panasonic connector, OTC connector, feed roller protective paste, wire feeder, wire feeder motor
13. OTC type, Panasonic type, Europ type wire feeder, wire feeder motor and all accessories.

Factory Tour

Previous: Panasonic P80 Air cooled Plasma cutter Torch with central adaptor for LGK100 plasma machine

Next: PT40 40Amp Plasma Cutting Torch with Low Frequency

Q1:Can I have a sample for testing?
A: Yes, we can support sample. The sample will be charged reasonably according to the negotiation between us.

Q2:Can I add my logo on the boxes/cartons?
A:Yes,OEM and ODM are available from us.

Q3: What are the benefits of being a distributor ?
A: Special discount Marketing protection.

Q4:How can you control the quality of products?
A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting or installation process, as well as aftermarket support. 100% self-inspection before packing.

Q5:Can I have a visit to your factory before the order?
A: Sure,welcome your visit of factory.
