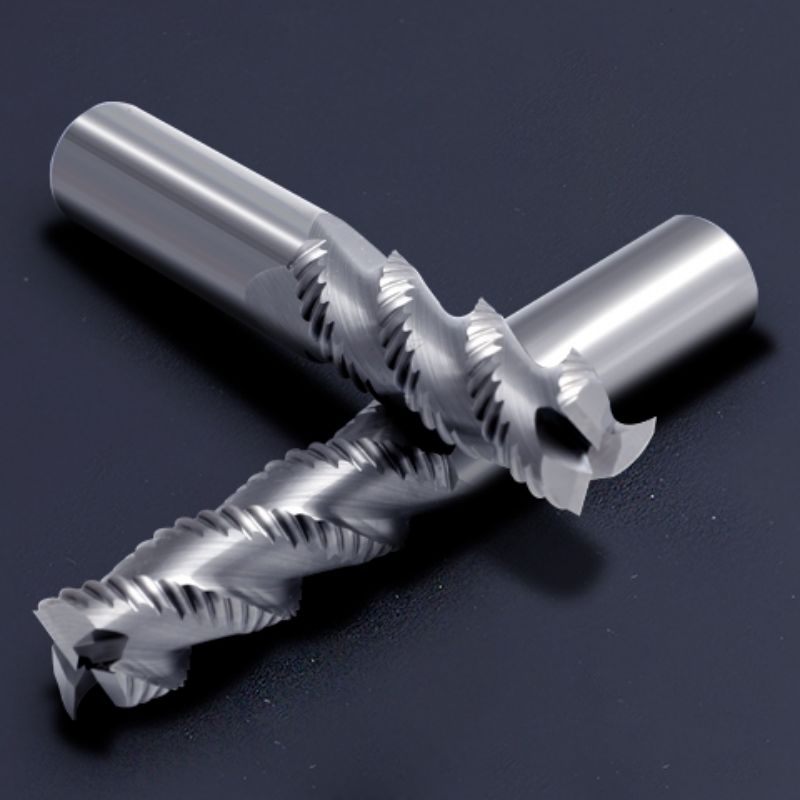

HRC55 Flutes Roughing End Mill For Aluminum&Steel

Short Description:

1. Special Cutting Edge: Special cutting edge can increase the cutting ability. The lifetime of tools and machines will be longer
2. Smooth And Wide Flute: Smooth and wide flute will remove the cuttings more easily
3. Heat-resistant Coating: With highly heat-resistant HELICA coating, can be used for high-speed processing
4. Bronze Coating: Under bronze coating, any abrasion is easy to be recognized
5. High Quality Raw Material: The raw material is used of high toughness, grain-sized carbon tungsten
6. Polished Surface Treatment: With high polished surface treatment, the friction coefficient could be reduced, the lathe efficiency could be improved, more production time could be saved

The roughing end mills have scallops on the outside diameter which causes the metal chips to break into smaller segments. This results in lower cutting pressures at a given radial depth of cut.


Product Detail

FAQ

Product Tags

Feature

Sharp wave and 35 helix angle design improve the chip removal capacity, widely used in slot, profile, rough milling.

Advantage

1. Large-capacity chip removal has powerful cutting, and the dispatching cutting is smooth, which can realize high-efficiency processing.
2. The chamfered layout of the handle makes it easier to install and clamp, the chamfer is smooth and bright, round and solid, beautiful and applicable.

Instructions for use

1. Before using this tool, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
2. The shorter the length of the tool extension from the chuck, the better. If the extension of the tool is longer, please adjust the speed, in/out speed or cutting amount by yourself.
3. If abnormal vibration or sound occurs during cutting, please reduce the spindle speed and cutting amount until the situation improves.
4. The preferred method of cooling steel material is spray or air jet, so as to use cutters to achieve better results. It is recommended to use water-insoluble cutting fluid for stainless steel, titanium alloy or heat-resistant alloy.
5. The cutting method is affected by the workpiece, machine, and software. The above data is for reference only. After the cutting state is stable, the feed rate will be increased by 30%-50%.

Brand Xinfa Material Stainless steel, die steel, plastic, alloy steel, copper, etc.
Type End Mill Flute Diameter D(mm) 6-20
Head Diameter (mm) 6-20 Length (ℓ)(mm) 50-100
Certification ISO9001 Package Box
