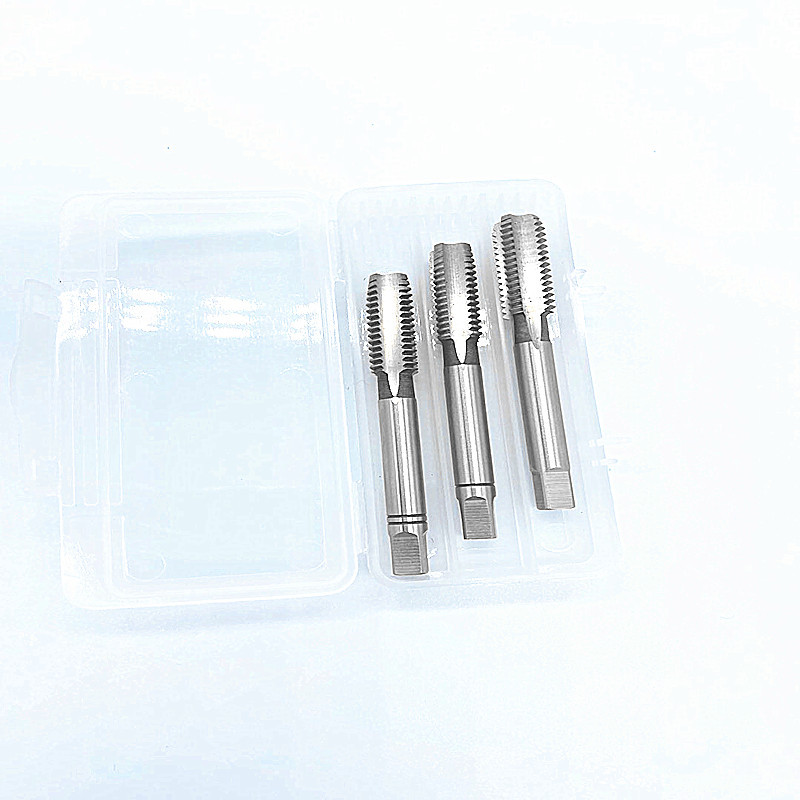

DIN352 HSS 3PCS Hand Taps Set

Short Description:

Hand taps refer to carbon tool or alloy tool steel thread rolling (or incisor) taps, which are suitable for hand tapping. There are generally two or three hand taps, which are called head taps respectively. There are usually only two for the second attack and the third attack. The hand tap material is generally alloy tool steel or carbon tool steel. And there is a square tenon at the tail. The cutting part of the first attack grinds 6 edges, and the cutting part of the second attack grinds two edges. When in use, it is generally cut with a special wrench


Product Detail

FAQ

Product Tags

Advantages

high hardness, sharp and wear-resistant, smooth chip evacuation

Features

High-speed steel material is used for overall heat treatment, high hardness, fast company speed, accurate thread, long service life

Terms and Conditions: When tapping, insert the head cone first to make the center line of the tap consistent with the center line of the drill hole . Rotate both hands evenly and apply a little pressure to make the tap enter the knife, no need to add pressure after the knife is entered

Terms and Conditions

When tapping, insert the head cone first to make the center line of the tap consistent with the center line of the drill hole . Rotate both hands evenly and apply a little pressure to make the tap enter the knife, no need to add pressure after the knife is entered

Specification

DIN352   Hand Taps
Size Pitch Overall Length Thread Length Shank diameter Limit
M2 0.4 36 8 2.8 6H
M3 0.5 40 11 3.5 6H
M4 0.7 45 13 4.5 6H
M5 0.8 50 16 6 6H
M6 1 56 19 6 6H
M7 1 56 19 6 6H
M8 1.25 63 22 6 6H
M9 1.25 63 22 7 6H
M10 1.5 70 24 7 6H
M11 1.5 70 24 8 6H
M12 1.75 75 28 9 6H
M14 2 80 30 11 6H
M16 2 80 32 12 6H
M18 2.5 95 34 14 6H
M20 2.5 95 34 16 6H
M22 2.5 100 34 18 6H
M24 3 110 38 18 6H
M27 3 110 38 20 6H
M30 3.5 125 45 22 6H
M33 3.5 125 50 25 6H
M36 4 150 56 28 6H
M39 4 150 60 32 6H
M42 4.5 150 60 32 6H
M45 4.5 160 65 36 6H
M48 5 180 70 36 6H
M52 5 180 70 40 6H

Use of straight groove taps

Generally used for thread processing of ordinary lathes, drilling machines and tapping machines, and the cutting speed is slow. 1.It has a good effect on machining materials with high hardness, materials that are easy to cause tool wear, cutting powdery materials, and through holes and blind holes with short tapping depths. 2.It has strong versatility, through-hole or non-through-hole, non-ferrous metal or ferrous metal can be processed, and the price is also cheap. But the target is also poor, everything can be done, and nothing is the best. The cutting cone part can have 2, 4, 6 teeth, the short cone is used for non-through holes, and the long cone is used for through holes.
