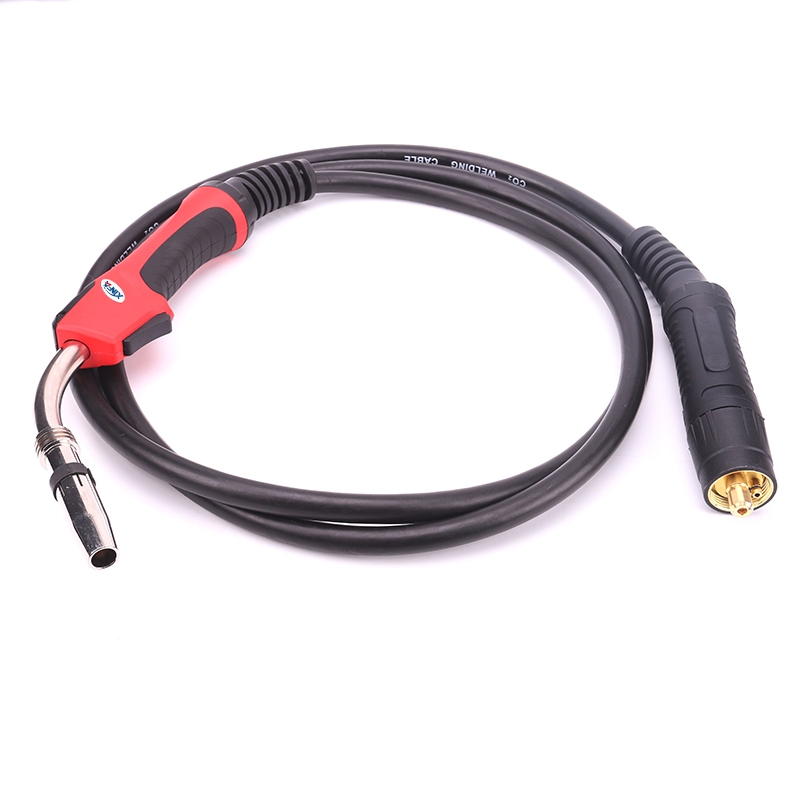

220A 24KD MIG MAG CO2 Welding Torch

Short Description:

More advantage
1.copper material 2. To connect and stability 3. Word of mouth good
4.Welding forming 5. Easy to use 6. Low failure rate


Product Detail

FAQ

Product Tags

Product Description

The welding torch diagram
220A 24KD MIG  MAG CO2  Welding Torch (1)
Accessories image resolution
220A 24KD MIG  MAG CO2  Welding Torch (2)
Gas nozzle
High temperature resistance,corrosion resistance,Product appearance elegant, long service life.
220A 24KD MIG  MAG CO2  Welding Torch (3)
Contact tip
Solid core copper rod, borehole directly integrated, no blocking by the silk, Good electrical conductivity, wear-resisting and durable.
220A 24KD MIG  MAG CO2  Welding Torch (4)
Contact tip holder
High quality copper, professional equipment. Better ductility, thermal conductivity and corrosion resistance welding of processed red copper.
220A 24KD MIG  MAG CO2  Welding Torch (5)
Gas diffuser
Smooth without burr, an integrated durable.

Product Information

1.Welding torch nozzle
2.Swan neck
3.Welding torch switch
4.Welding torch handle
5.Support
6.Power cable
7.Welding torch connector

asdf (5)

Product preview

asdf (6)

MIG 220A Binzel Style 24KD Co2 gas Mag Welding Torch

Part No.

Description

012.0103

24KD Complete Torch-3M

012.0104

24KD Complete Torch-4M

012.0105

24KDComplete Torch-5M

145.0047

Cylindrical Nozzle 17mm

145.0080

Conical Nozzle 12.5mm

145.0128

Tapered Nozzle 10mm

140.0051

M6*28*0.8 Contact Tip,E-Cu

140.0169

M6*28*0.9 Contact Tip,E-Cu

140.0242

M6*28*1.0 Contact Tip,E-Cu

140.0379

M6*28*1.2 Contact Tip,E-Cu

140.0054

M6*28*0.8 Contact Tip,CuCrZr

140.0245

M6*28*1.0 Contact Tip,CuCrZr

140.0382

M6*28*1.2 Contact Tip,CuCrZr

142.0003

Contact Tip Holder

012.0183

Gas Diffuser

012.0001

Swan Neck

400.0044C

Plastic Nut

180.0076

Handle

185.0031

Switch

175.A022

Switch Connector Collet

500.0225

Cable Support Spring

160.0239

Cable Assembly(25²),3M

160.0225

Cable Assembly(25²),4M

160.0267

Cable Assembly(25²),5M

500.0225

Cable Support Spring

501.2248

Cable Support Machine Side

500.0213

Adaptor Nut

501.0003

Central Connector KZ-2

501.0082

Nut M10*1

Guide Spiral Liner

PTFE Core Liner
